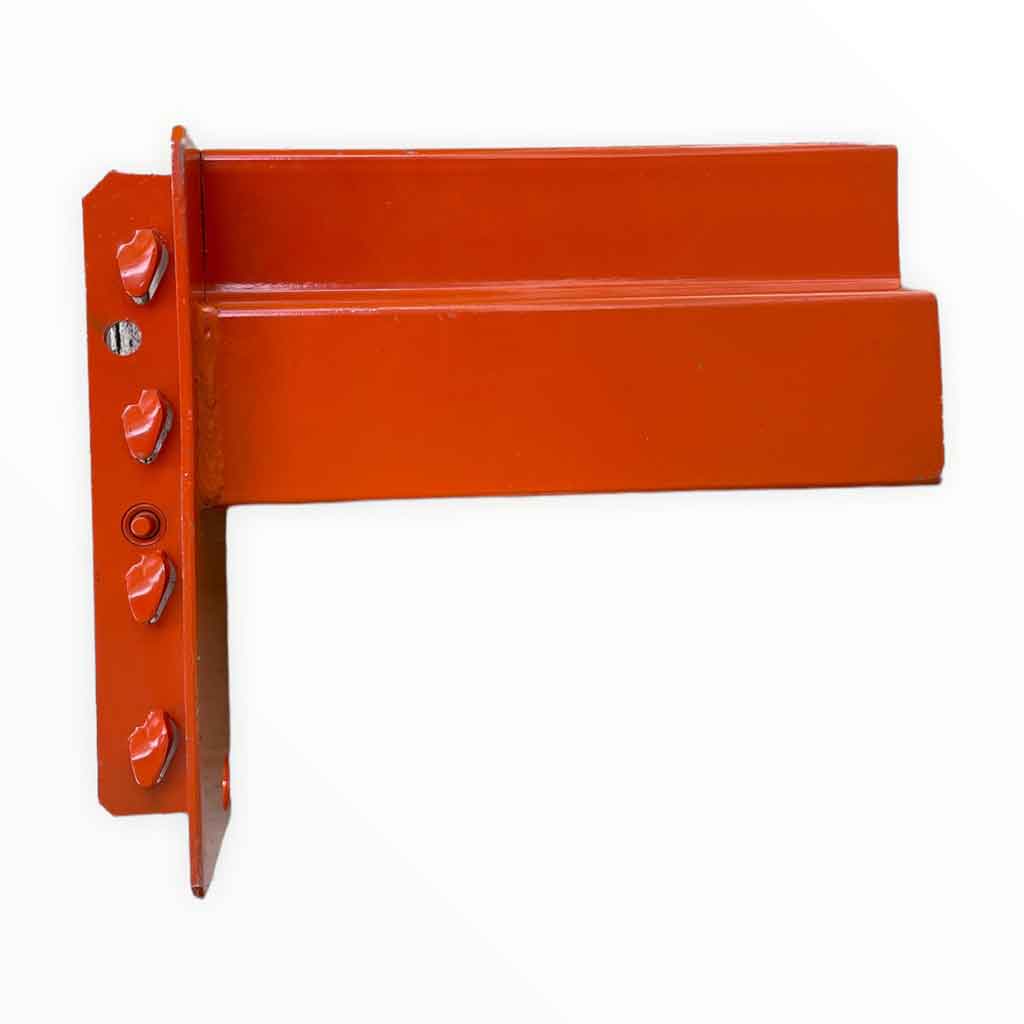

Interlake Mecalux Pallet Rack Teardrop Step Beams 12′ Long x 6.5” Face

Interlake Mecalux Pallet Rack Teardrop Step Beams 12′ Long x 6.5” Face

$87.00

  • Size: 12′ Long x 6 – 9/16” Face
  • Height: 6 – 9/16”
  • Weight: Varies
  • Capacity: 7,110lbs
  • Color: Powder Coated Orange
  • Adjustable on 2″ centers
  • Beam Lock Automatically Engages for Safety
  • 1 5/8″ Step for any standard wire deck or crossbar
SKU: TB144-6.5 Category:

Description

Mecalux Pallet Rack Teardrop Step Beams 12′ Long x 6-9/16” Face
7,110lbs capacity

INTERLAKE TEAR DROP PALLET RACK BEAMS

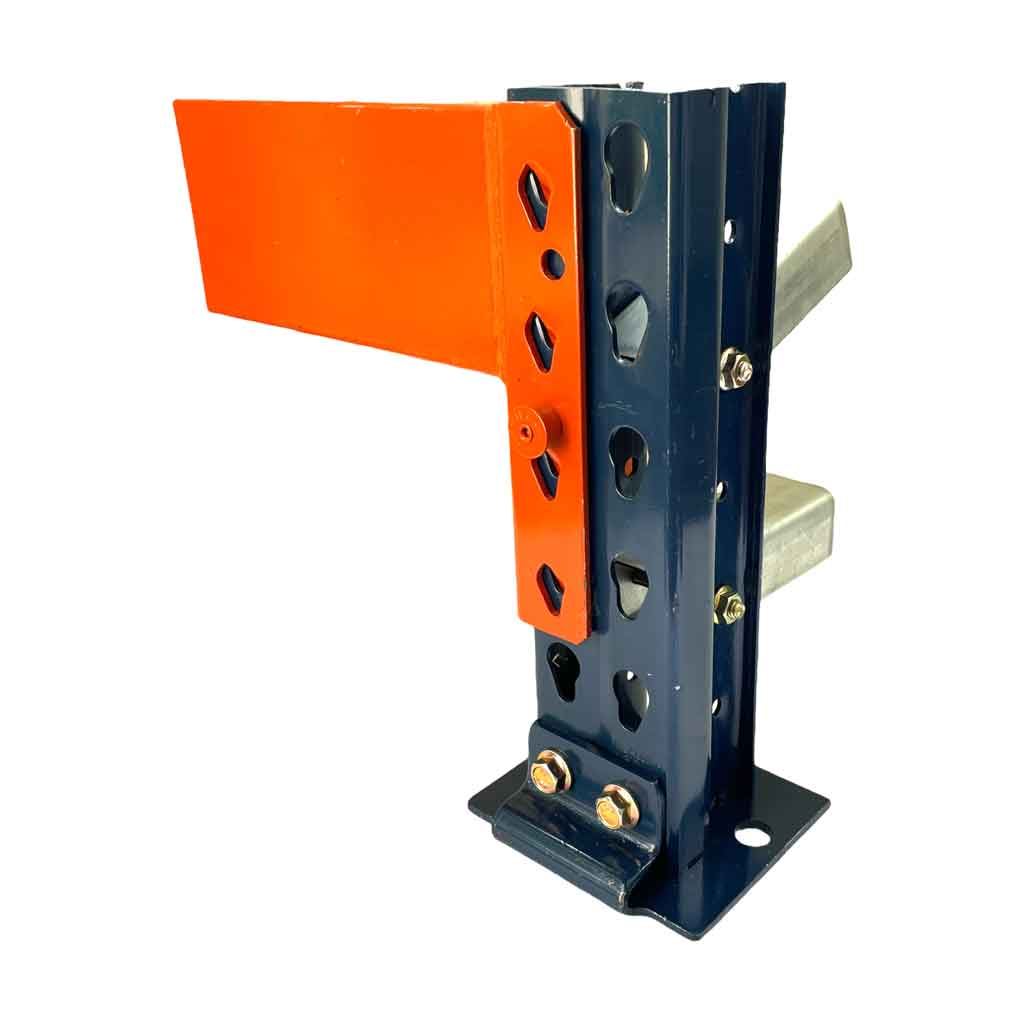

High strength 15-gauge beams. 2-3/4″W x 1-1/2″ step beams accommodate cross bars and decking. Interlock stud and keyhole connection automatically locks into column. Piston lock secures beam into place.
To select load beam determine the desired length by adding a minimum of 10″ to two pallet widths or 14″ to three pallet widths. Additional spacing may be required for pallets with excessive load overhang. Ensure that each pair of beams is capable of supporting the weight of the pallets per level.
Sold individually (*Price is per beam, 2 beams are required to create a shelf level.
Capacity is per shelf level.
To select wire decks:  3 wire decks 46” wide will go on a 12′ long beam.  For each shelf level, order 3 wire decks.

Additional information

Weight 50 lbs
