Wire Decking 42” Deep x 46” Wide

Wire Decking 42” Deep x 46” Wide

$27.00

42” Deep x 46” Wide Standard Channel Wire Decking.
2,700lbs Capacity
3 standard channels for 1-5/8” step beams
Manufacturer:  Nashville Wire
Part #:  D4246AA3A1
Nashville wire racking 42″ deep 46″ wide

Description

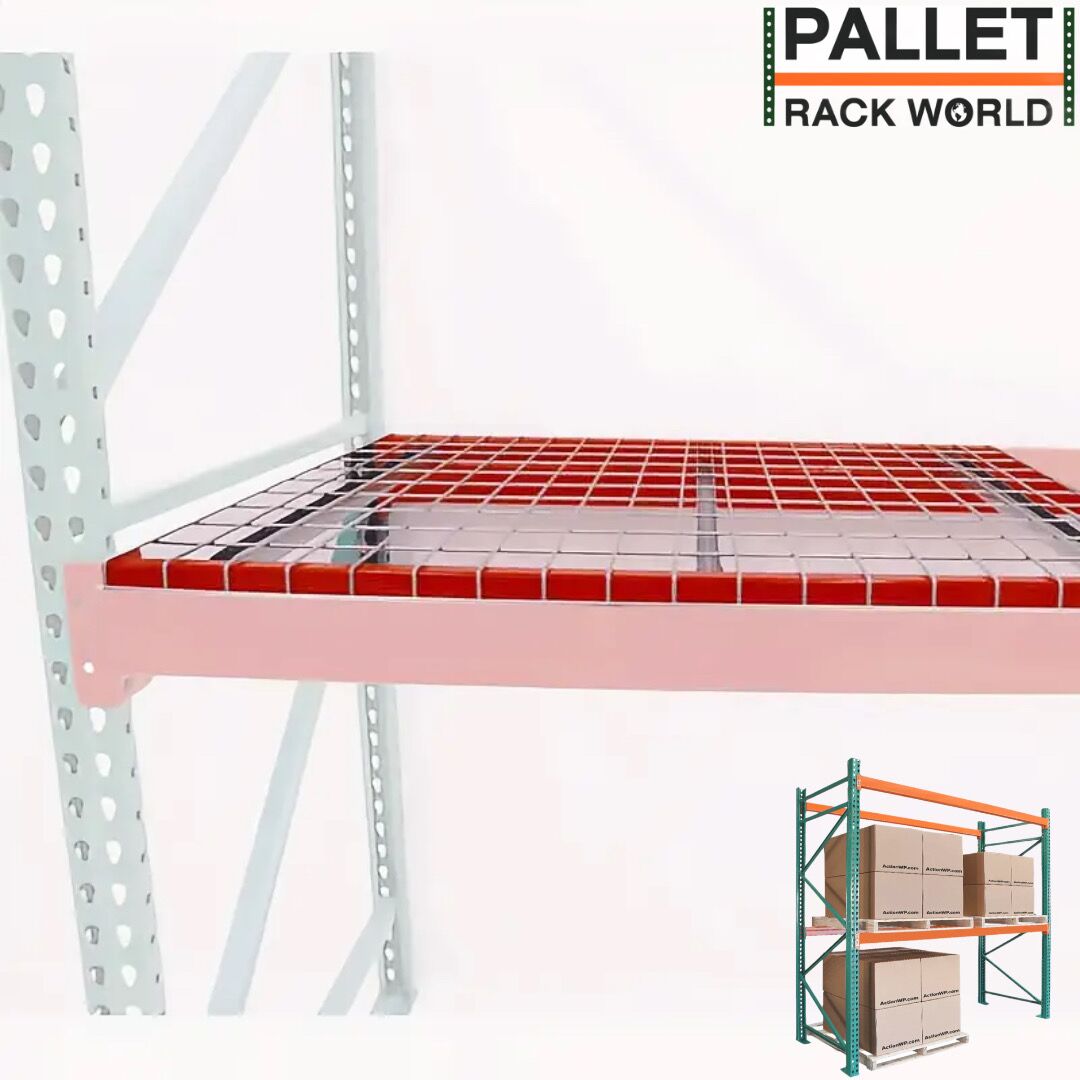

Nashville wire racking 42″ deep 46″ wide  wire decking for standard step beams are the most popular size of wire decks.
The most common pallet rack upright depth is 42” deep.
The most common pallet rack beam length is 96” or 8′ long.
Two 42” deep x 46” wide wire decks are used on an 8′ long pallet rack shelf.

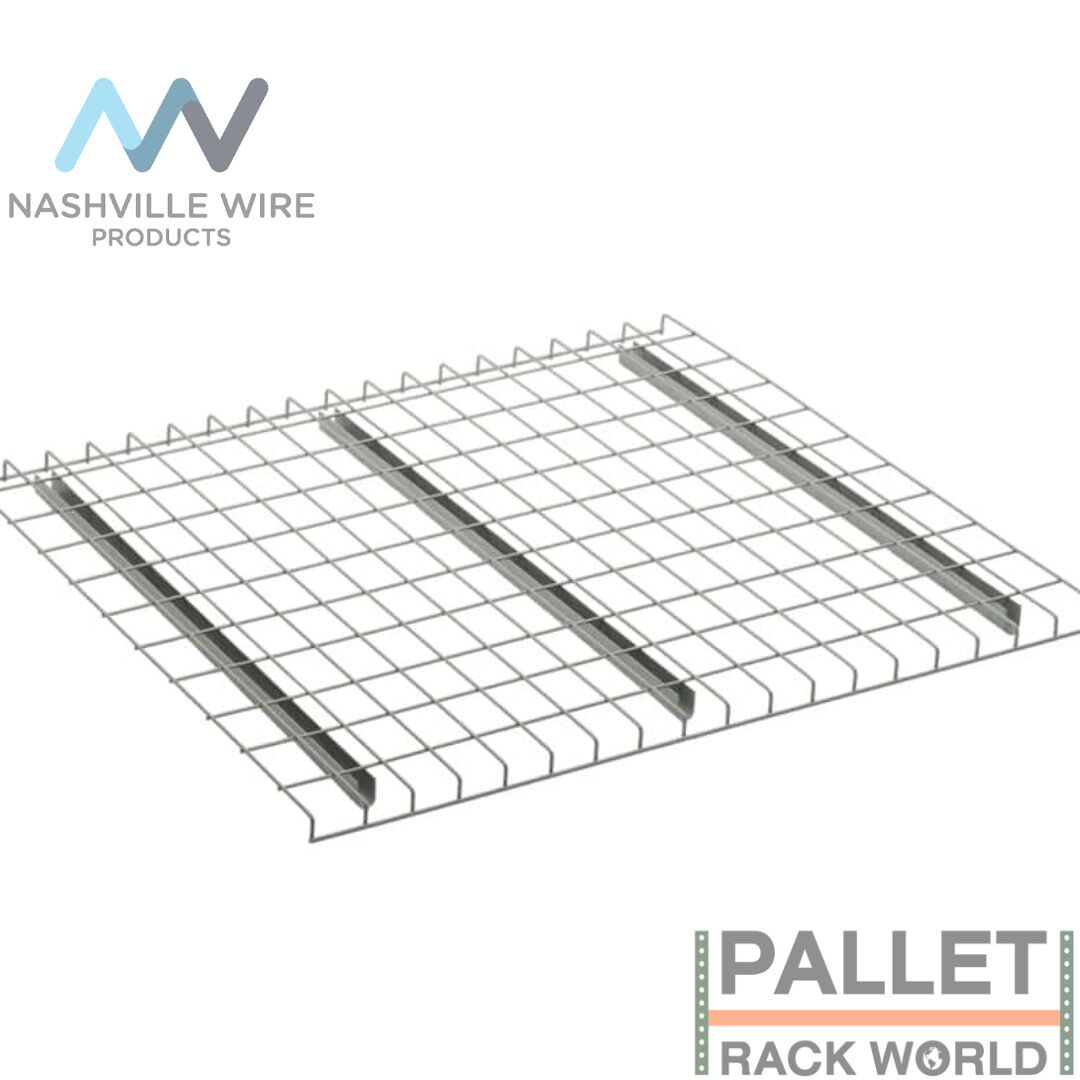

  • 42” Deep x 46” Wide Wire Decking
  • Capacity – 2,700lbs UDL
  • Color Finish – Powder Coat Grey
  • Brand – Nashville Wire
  • Support Channels – 3
  • Mesh Pattern – 2.5” x 4”
  • Wire Diameter 6 Gauge
  • Weight – 19.62lbs
  • Part #  D4246AA3A1
  • Spec Sheet – Click Here
Wire Mesh Decking

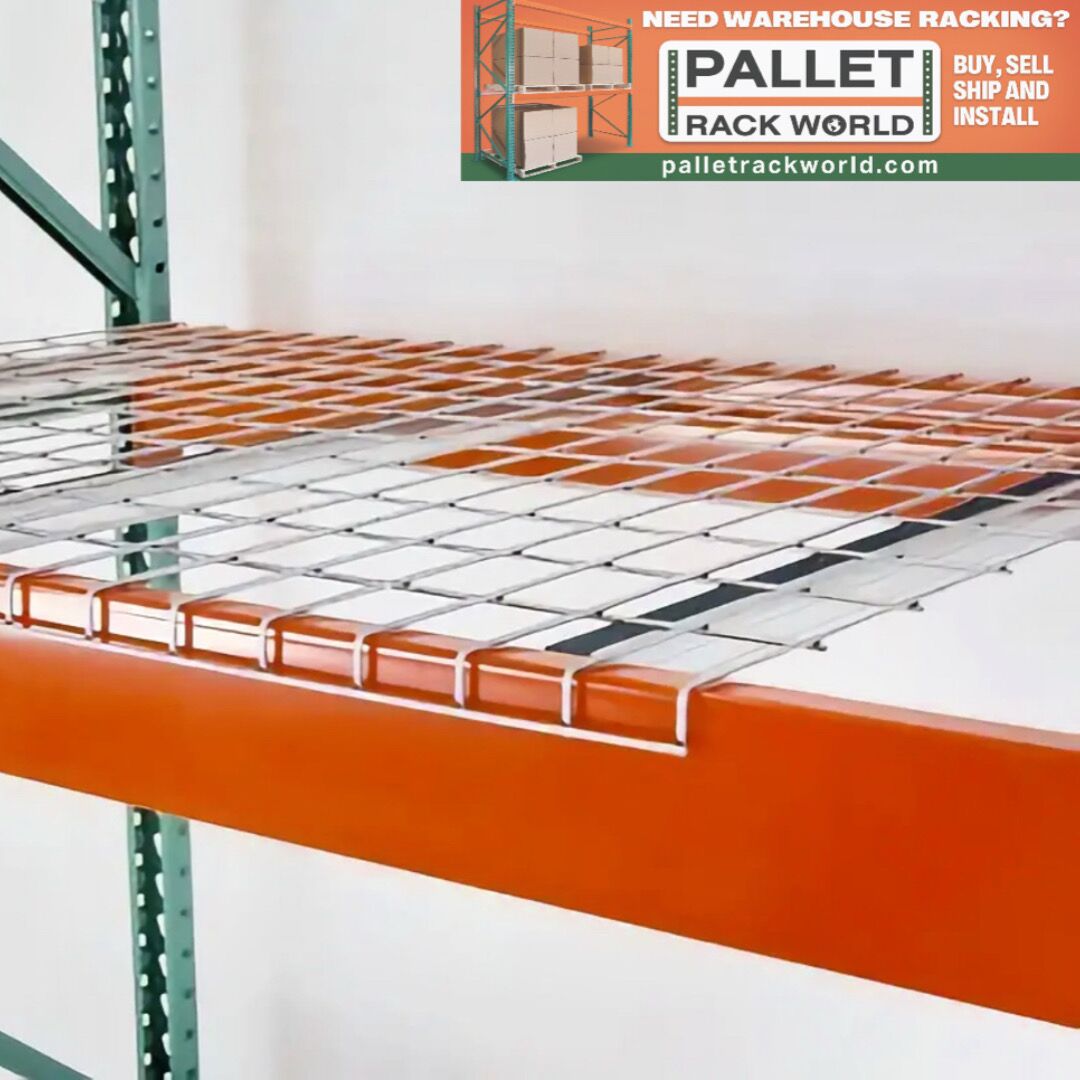

Strong, 2-1/2″ x 4″, 6-gauge wire, gray baked enamel finished wire decking features welded construction and 13 gauge channel supports. Unlike wood or metal decking, wire permits light, air and sprinkler penetration; allows a clear view of upper tiers; and minimizes dust and debris accumulation. The installation is easy — simply drop into place over beams. Use with beams that have 1-1/2″ or 1-5/8″ step. 2700 lb. capacity.
