Nashville Wire Pallet Rack Wire Mesh Decking 42” Deep x 52” Wide

Nashville Wire Pallet Rack Wire Mesh Decking 42” Deep x 52” Wide

$30.00

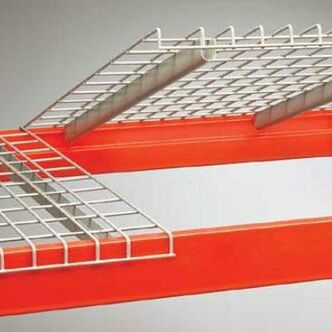

A Standard or Step Waterfall Wire Deck rests on the step part of the beam while part of the decking rests on top of the beam. The edge of the deck hangs over the face of the beam for added support. The step carries the weight of the decking and its contents across the surface area of the step beam.

This image show a “U” Channel cross support that rests on the step as well. This adds to the strength of the Wire Deck. The more Channels a deck has the more it can hold. A typical wire deck comes with 3 channels and larger ones will have 4. The face of the decking creates a partially unobstructed view of the entire beam face for reading the labels and product barcodes.

Wire Mesh Decking for Pallet Racking

Description

Wire Decking 42” Deep x 52” Wide
2,700lbs Capacity
Color:  Gray
Mesh Pattern:  2.5” x 4”
Channels:  3 Channels welded underneath the decks for standard 1-5/8” step beams
Weight:  22lbs each

Additional information

Weight 23 lbs
