Add-on Section of Teardrop Pallet Racking with Wire Decking 8’H x 42″D x 96″W

Description

Add-on unit includes:

1 Mecalux Teardrop upright 8′ high x 42″ deep, 16,700lb capacity, 3″ x 2.7″ Post ($95.00 each)

4 Mecalux Teardrop beams  8′ Long x 4″ Face, 5,370lb capacity, (39.00 each)

4 Wire decks 42″ deep x 46″ wide 2,500lb capacity ($29.00 each)

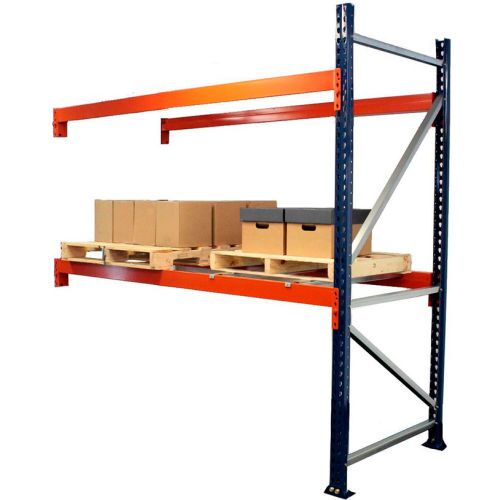

Uprights are the blue verticals that include a front post, and back post and the braces that bolt the posts together. Beams are the orange horizontals. Each shelf level requires a front and back beam. (2 beams per level) Wire decks are the mesh grating that simply drop into place to create the shelf. (2 wire decks per level)

Pallet Rack World stocks all sizes of uprights, beams and wire decks.
